用处与概述/Brief Introduction：

皮下注入使供水进行的环保机器设备皮下注入使供水进行的是纯化水经萃取得到的，革兰氏阴性菌内毒物等质量指标均达到中国内地药典皮下注入使供水进行的项下规定的水体规定，用做维持生计物制作药品企业主中几大类立即皮下注入入人体组织内用药的石油醚。皮下注入使供水进行的环保机器设备重要例如皮下注入使供水进行的制作、配置吸收、日常动态配资和加工过程调整等重要接口。

特别/Characteristic：

◆全自行运行方式，避免 员误运行创造的生产加工失去；Automatic operation mode, to prevent losses of wrong operation of production;◆构件适用316L面料；Components in 316L texture◆带PLC管理的CIP产品的；CIP products with PLC control◆统计与保持进行维护清洁方式的指标与操作步骤；Record and save the parameters of the cleaning process and steps◆够满足GMP让的可产品追溯性与可以说明性； Meet GMP requirements traceability and accountability◆一体式化方案但是有效合理利用个人空间；Integrated design can effectively save space◆完成种植和保养的如何快速转换；Implement production and clean fast switching◆巴氏清洁消菌，清洁更彻底删除文件；Babbitt disinfection sterilization, cleaning more thoroughly◆多效蒸溜机：设备液压管路对接整体利用定时激光焊接，按干净级标准规范，止回阀利用快卡对接，处理了肌内注射用纯净水的分批被污染；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸气发生了器：PLC人机对战运营管理画质，可0-100%自功调整至必须的产量比条件；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无卫生死角方案：注入用水的整体洁净度蒸汽管道需要满足GMP3D必须，胶垫为PTPE/EPDM，隔离膜阀质量使用时为四十五度，再循环装置供水管道使用设为0.5的坡度比，设低些为废气排放点,同时以湍液动态再循环装置流失的日常的储存和气力输送机整体，控制微海洋生物的引起；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完善的材料机装置：①材料不非常符合GMP的要求；②自然化控制机装置可不非常符合GAMP5；③3Q材料满足了生物药业公司认证的必须。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆合理配置高能力交流变频泵用为传输和分销注谢用自来水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板板式热交换器器，在纯化水长日期循环法的过程 中具有急冷目的。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆填充加水贮罐重要分为直列V型贮罐首先其次柜式贮罐，符合卸料泵液位标准要求，科学的設置罐体风速控制生物学膜造成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆主要包括80℃往上保暖巡环开发，以避免用自来水系统性微菌物出现和被污染的。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆选配带电体受热（水汽受热）呼气滤出器。Equipped with electric heating, steam heating) breathing filter◆罐底有水出口加设椎型侧板以扩张采拒马河水面，杜绝电磁感应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐联网选取N2保护好，持续制药业加水储放及分配原则系统正压力，放置对外部分流污染问题。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆医药集团污水输送机泵采用了316L不锈钢材料手工制造（浸水那部分），电拋光并钝化治理 。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

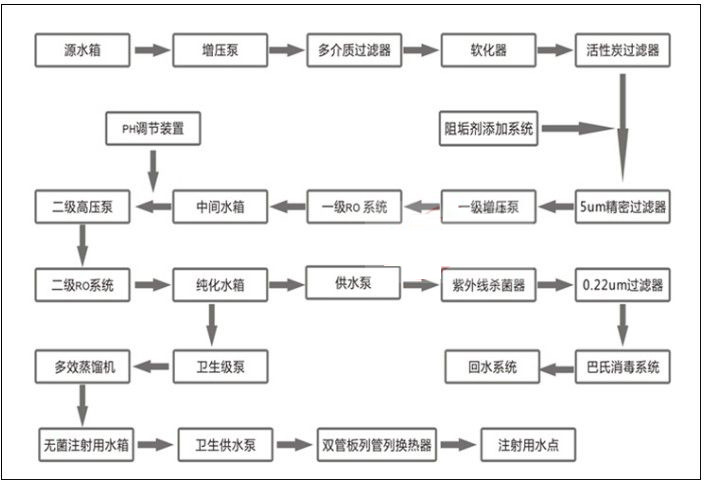

三、控制系统制作工艺工艺操作流程
