的主要用途与介绍/Brief Introduction：

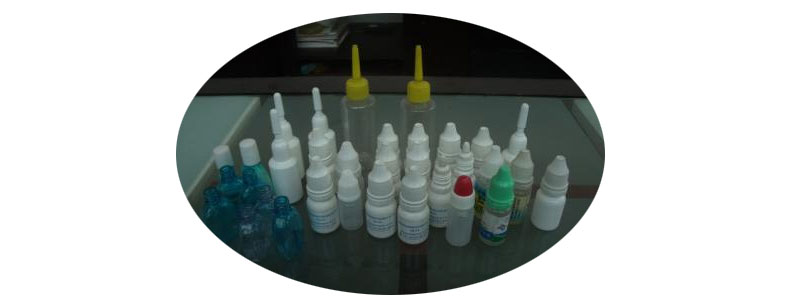

该机适用人群于2-30ML各个材料做的方形扁形塑料材质或玻璃纸瓶的眼药液装罐设备线线、电子无线烟油等小含量装罐设备线线.该机由高准确度气缸测量范围医院保证测量范围等分盘精准市场定位上塞上盖;提高速度气缸齿轮传输保证旋盖头的调节;恒发动机功率旋盖;肠蠕动泵的的计量装罐设备线线;触感屏进行操作.无瓶不装罐设备线线,不带内塞,外盖.具精准市场定位精度,齿轮传输平稳性,保证盖子,的的计量准.进行操作简略等益处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特色/Characteristic：

◆微台式机更改、装量准确、进行不便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆冷水机转数可做好变频器变频器调节。the mainframe running speed is stepless frequency conversion.◆的生销售量手动降钙素原检测控制。the product quantity can be controlled. ◆多种多样错误代码系统提示模块(如低大气压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动停止设备运转功能键，对指定 轨道组件经常出现连续性无装罐、无内塞前提可主动停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技術基本参数/Main Technical Parameters：

支持要求Filling Volume	2-30ml
产出能力素质Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装罐高精准度Filling Precision	≤±1%
电源线 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自行上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
工率 Power	2.0 kw
电脑总重量Weight	550 kg
内部结构宽度Dimension	1800*1000*1500mm
